Invoicing procedure

Single-step payment is a type of payment in which a single request invoice/create is immediately blocking and withdrawing funds. Two-step payment is a type of payment when funds are withdrawn in two steps. You can check which payment ways support two-stage payment with the manager. The first request invoice/hold is used to hold (block) funds on the client’s account. The second request invoice/charge initiates the withdrawal. If you want to cancel a previously held payment, then cancel it using the invoice/unhold method. The money will be returned to the payer.

​
Single-step payment

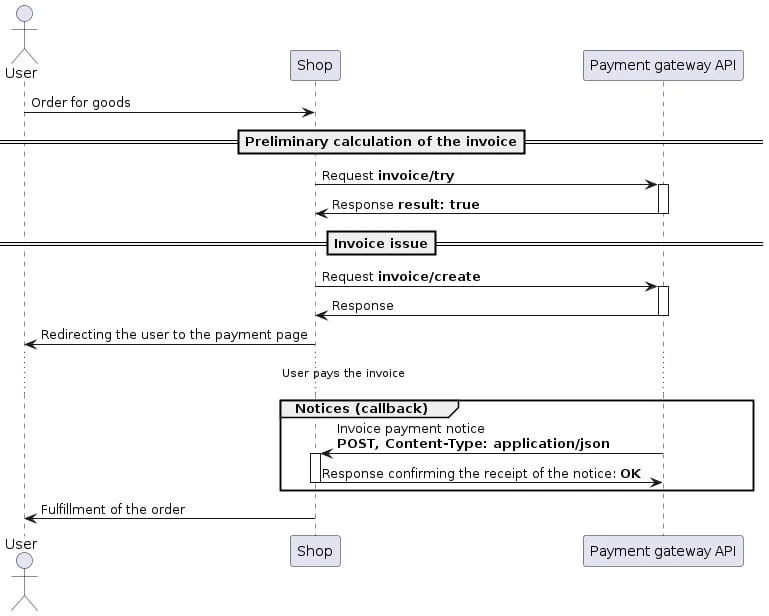

Telegram Cloud Photo Size 2 5204333575216502086 X
  1. User generates an order on the shop’s website;
  2. Shop sends a request to pre-calculate the invoice and get additional parameters invoice/try;
  3. When receiving result: true, verify the availability of additional information in add_ons_config, if present, it is necessary to pass additional parameters in the invoice request. When you get result: false, you need to analyse the error code in the error_code field (see description of error codes). If the error code is not fatal, then you need to wait for the server notification. If the error code is fatal, then communication with our API is over.
  4. After verifying invoice/try, the shop sends an invoice request invoice/create, specifying the required parameters and additional information from add_ons_config (if it is required for the specified payment direction);
  5. The response returns information with the invoice and data to be sent by the specified method to the specified URL for making or charging the payment. It is necessary to send the user to make a payment. In case result: false, you need to analyse the error code in the error_code field (see description of error codes). If the error code is not fatal, then you need to wait for the server notification. If the error code is fatal, then communication with our API is over, it is necessary to inform the user that the payment was not created.
  6. After the payment is made or charged by the user, the M4 system sends a notification to the URL of interaction with the shop, containing payment information, for more information, see here;
  7. After receiving the charge, the payment is considered successfully completed.

​
Two-step payment

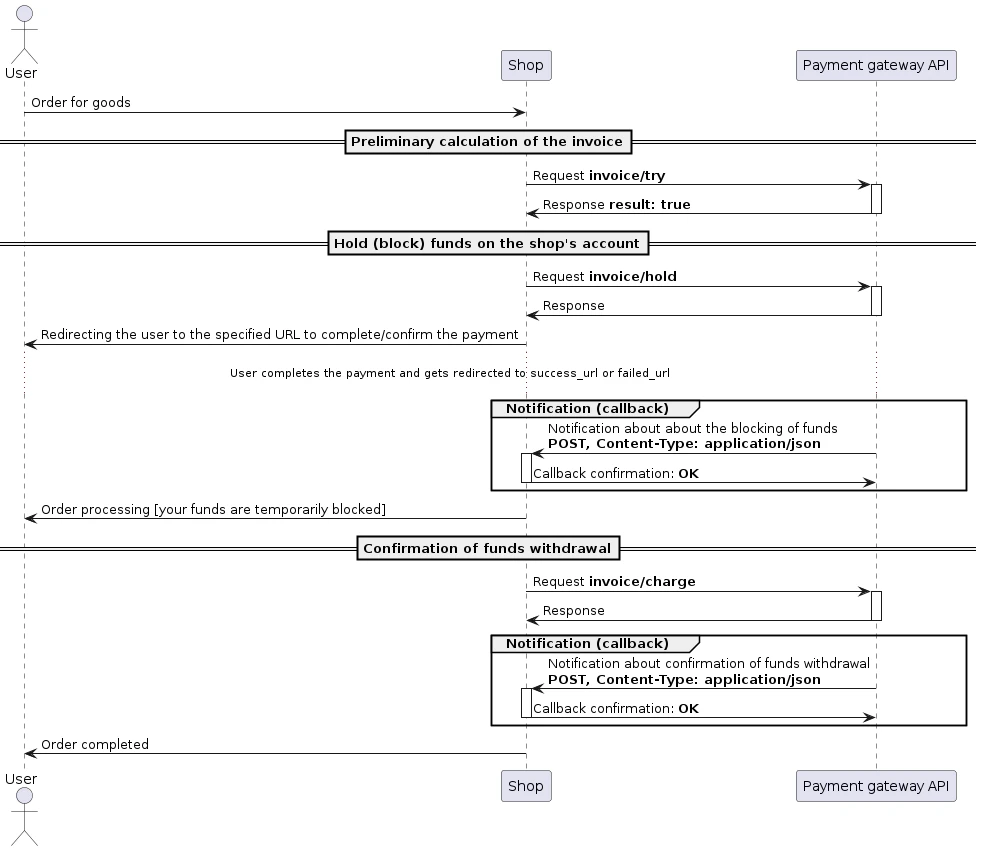

Invoice Two Stage Flow V1
  1. User generates an order on the shop’s website;
  2. Shop sends a request for a preliminary calculation of the issued invoice and receiving additional parameters invoice/try;
  3. When receiving result: true, the availability of additional information in add_ons_config is checked, if present, additional parameters should be passed in the invoice request. When you get result: false, you need to analyse the error code in the error_code field (see description of error codes). If the error code is not fatal, then you need to wait for the server notification. If the error code is fatal, then communication with our API is over.
  4. After verification invoice/try shop sends invoice request invoice/hold, specifying the required parameters and additional information from add_ons_config (if it is required for the specified payment way);
  5. The response returns information with the invoice issued and data to be sent by the specified method to the specified URL for making or charging the payment. It is necessary to refer the user to make the payment. In case result: false, you need to analyse the error code in the error_code field (see description of error codes). If the error code is not fatal, then you need to wait for the server notification. If the error code is fatal, then communication with our API is over, it is necessary to inform the user that the payment was not created.
  6. After payment is completed by the user, the M4 system sends a notification to the shop’s interaction URL, with information about the blocking of funds;
  7. After the funds are blocked on the client’s account, you can charge the payment invoice/charge or cancel the holding invoice/unhold;
  8. The response returns information with the result of charge (sometimes the payment status may not be final, then you should wait for the notification);
  9. M4 system will send a notification to the URL of the interaction of the shop with the final status regarding the confirmation of funds withdrawal.

​
Ensuring payments idempotency

Warning: The system has duplication protection for invoice creation, shop_order_id should be unique within a single shop.
